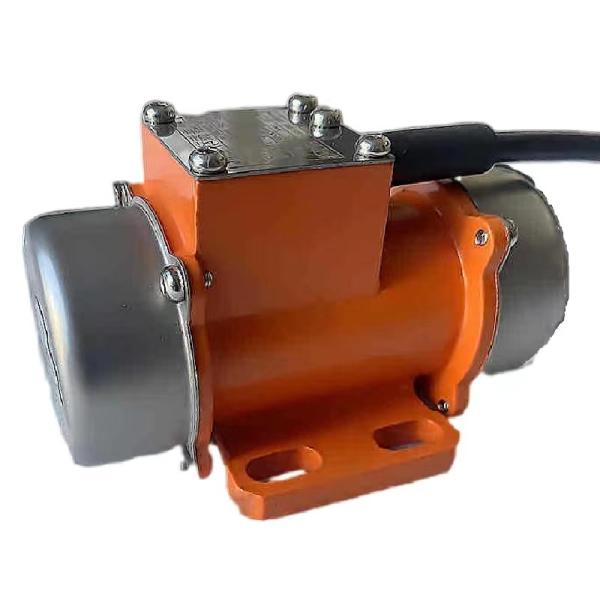

Mini Small Size DC12V 24V AC BLDC Motor For Vibrating Mixing Truck
Loading Concrete Vibrator
This is a DC24V BLDC motor apply for vibrating mixing truck loading
concrete vibrator, the motor power for typical model are 15Wto
100W. Hengsheng focus on producing AC and BLDC motors for really
long time. We manufactured almost ally types motors for air
conditioners and similar applications. Free free to send us en
email for any motor inquiry.
Specification
Product name: AC BLDC motor
- Rated Voltage:DC12V DC24V
- Output power range:10W-100W
- IP level:IP20/IP44
- High quality ball bearing with low noisy and long operating life
- Insulation class:B/F
- Automatic thermal cutoff
- Used in heating ventilation and air conditioning area
| Model | Voltage | Current | Power | Frequency | Force |
| V | A | W | 50Hz RPM | KG |
| HY15DC24 | 24 | 1.0 | 15 | 4000 | 10 |
| HY20DC24 | 24 | 1.2 | 20 | 4000 | 15 |
| HY30DC24 | 24 | 1.5 | 30 | 4000 | 20 |
| HY40DC24 | 24 | 1.6 | 40 | 4000 | 25 |
| HY50DC24 | 24 | 1.7 | 50 | 4000 | 30 |
| HY60DC24 | 24 | 2.5 | 60 | 5000 | 60 |
| HY70DC24 | 24 | 2.9 | 70 | 5000 | 70 |
| HY80DC24 | 24 | 3.3 | 80 | 5000 | 80 |
| HY90DC24 | 24 | 3.8 | 90 | 5000 | 90 |
| HY100DC24 | 24 | 4.0 | 100 | 5000 | 100 |
Features of AC BLDC motor
Reasonable structure
Low noise
Long life
Over current protection
Application of AC BLDC motor
BLDC motors are widely used in a variety of load, constant load and
positioning applications such as industrial control, automotive,
aviation, automation systems, healthcare equipment and other
fields. In recent years, due to the large-scale research and
development of brushless BLDC motor and the gradual maturity of
technology, the distribution range of its drive system in
industrial production also expands, and it has gradually become the
mainstream of industrial motor development.
3. Advantages and disadvantages of BLDC motor applications
Advantages of BLDC motor:
3. Advantages and disadvantages of BLDC motor applications
Advantages of BLDC motor:
1.1 Simple structure and reliable quality:
Cancel commutator, carbon brush, brush arm and other parts, no
commutator welding, fine turning process.
1.2 Long service life:
The use of electronic components to replace the traditional
commutator structure to eliminate the problem of short life caused
by carbon brush and commutator commutation spark, mechanical wear,
etc., and the motor life is increased by multiples.
1.3 Silent and efficient:
The structure without carbon brush and commutator avoids
commutation spark and mechanical friction between carbon brush and
commutator, resulting in noise and heat, causing motor energy loss
and reducing motor efficiency. The efficiency of brushed DC motor
is 60~70%, while the efficiency of brushless DC motor can be 75~90%
1.4 Broader speed regulation and control capabilities:
The use of precision electronic components and sensors can
accurately control the output speed, torque and position of the
motor to achieve intelligence and multi-function.Simple structure
and reliable quality:
Cancel commutator, carbon brush, brush arm and other parts, no
commutator welding, fine turning process.
