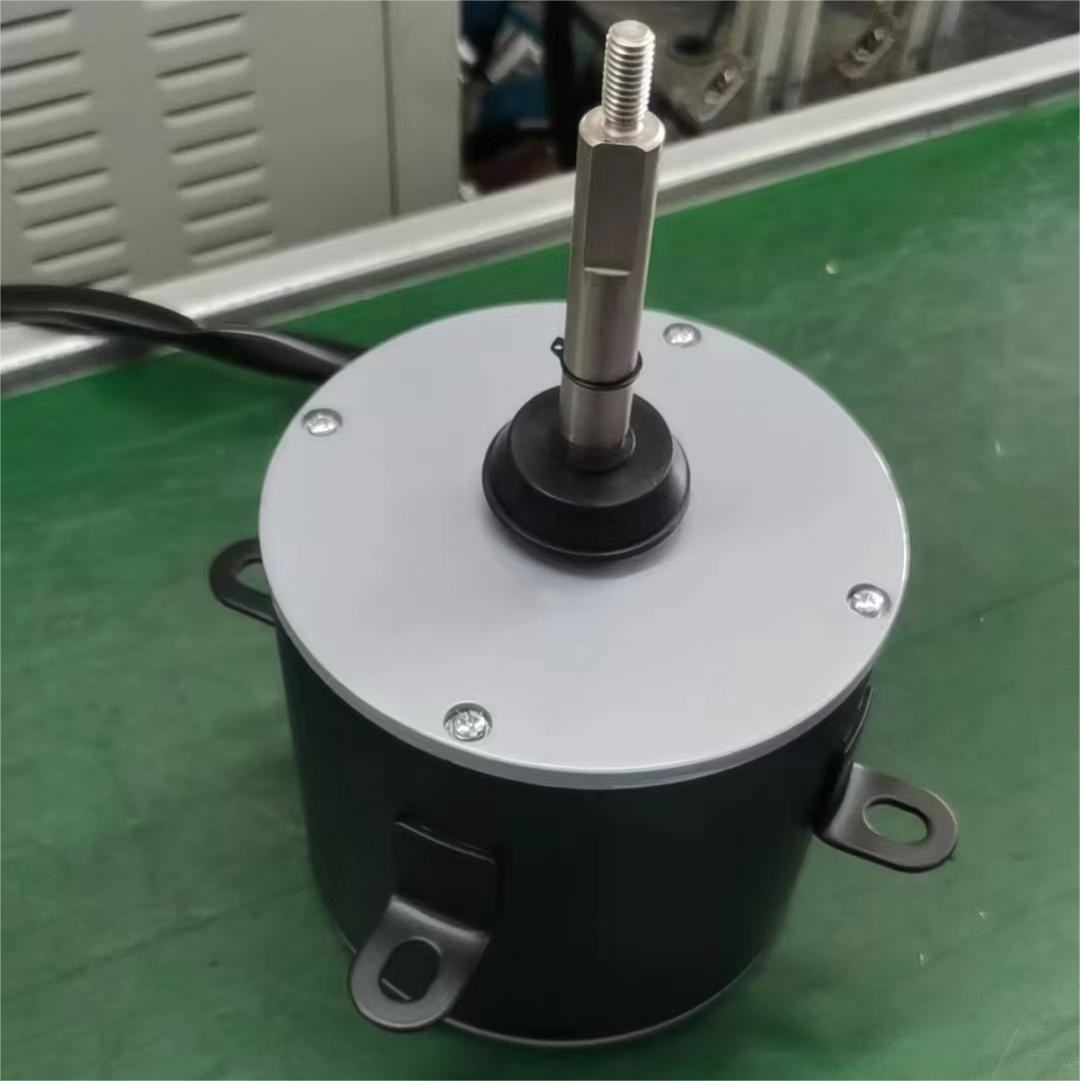

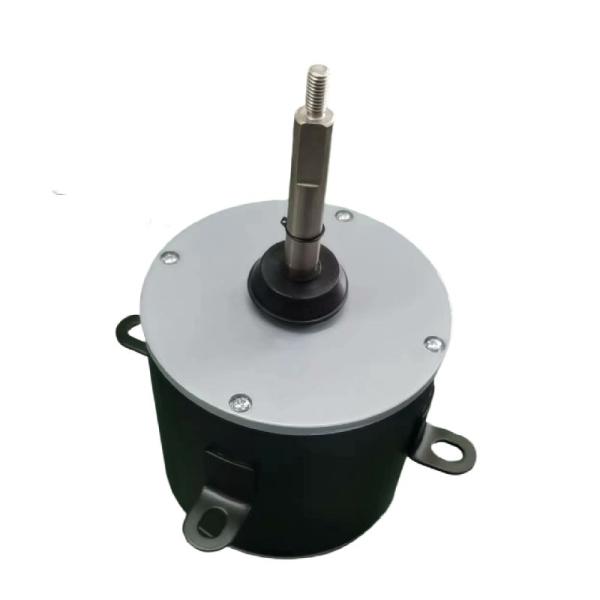

Three phase 380V 60hz 3 speed YDK140 825rpm Axial Commercial Air conditioner fan motor

Introduction

Changzhou Hengsheng Electric Co., Ltd, located in Changzhou city, Jiangsu Province, has been specilized in the field of exporting air conditioner fan motor , motor driver, BLDC motor and PM motor for several years. We have our own production base and a strong R&D team. This is a single phase capacitor run central air conditioner unit fan motor . Power range from 5-750W, speed 500-1500RPM.

Specification

Quick Details

Output Power:1/4-1HP

Type:Air conditioner fan motor

Frequency:50/60hz

Phase:Single-phase/Three phase

Certification:CCC, CE, ROHS, UL, ISO9000.UL.CSA

Protect Feature:Totally Enclosed

Voltage:115/120 V/208-230V

Insulation:Class B/F

Features of air conditioner fan motor

• Reversible plug for easy rotation

• Class E/F/H Insulation

• Quick installation

• Energy efficient

• Quiet operation

• Ball bearing

• Dual voltage 115/208-230 voltage

• Diameter: Steel cover144mm

• Automatic overload

• Operating temp -10-43 degree

• Power:150-250W

• Rated Frequency:50/60Hz

• Number of Pole: 6/8Pole

• Shaft size:15mm

• Speed: 825-1075rpm

• Thermal protection

• High efficiency,High reliability,Little vibration,Low noise

More information of air conditioner fan motor

Fans are widely used in factories, mines, tunnels, cooling towers, vehicles, ships and buildings for ventilation, dust removal and cooling, boiler and industrial furnace ventilation and ventilation, air conditioning equipment and household appliances in the cooling and ventilation.

Air conditioning fans are also widely used in all kinds of ventilation places, and become the auxiliary products of air conditioning and purification equipment. Therefore, this paper mainly studies the performance parameters of air conditioning fans, as well as the selection of air conditioning fans.

The structure of air conditioning fan

The air conditioner fan is mainly composed of the housing, impeller, air inlet and outer rotor motor. The casing is generally made of galvanized steel plate bite as a whole, or high-quality cold rolled plate bite. Its shape and line are smooth, heat resistant, moisture resistant and durable. The impeller is usually a forward multi-wing circular arc blade riveted with the front disc and the middle disc, after strict dynamic and static balance correction, to ensure smooth running, high efficiency, low noise. The air inlet is processed by the mold, and the section parallel to the axis is streamlined, so that the gas is smooth and the resistance is small. The outer rotor motor fixes the two shaft ends on the air inlet, and the impeller is directly connected with the rotating motor housing to reduce transmission loss and improve the efficiency of the fan.

Air conditioning fan motor it has a variety of types, according to the working power to divide, divided into air conditioner DC fan motor and air conditioner AC fan motor; According to the structure and working principle, it can be divided into DC motor, air conditioner asynchronous fan motor and air conditioner synchronous fan motor.

We are an industry-focused, solution-oriented organization producing innovative products for our customers，in a supportive and progressive environment from our employees and suppliers. We continually seek new and alternative methods of improving all facets of our business with the goal of becoming the preeminent supply of standard and custom products to the various markets we serve. How may we help you?

INTRODUCTION

Changzhou Hengsheng Electric Co., Ltd. located in Changzhou city, Jiangu Province of China.

We focus on production of all kinds of small motor, we have strong R & D team and professional manufacturing base, and we provide non-standard customized service to our customers.

The core team members come from the internationally renowned motor industry, with advanced design concepts and management levels. According to the concept of Six-igma and the framework of TS6949, the company has established an effective operation system, and continuously optimized in management practice to ensure the high quality of all aspects of design and manufacturing.

The company's main products are BLDC motors, PMDC motors and various AC motors, widely used in central air conditioning motors, purification fans, industrial fan motors, high temperature drying motors, pump motors, axial fans, animal husbandry fan motors, dehumidifier fans, HVAC industry, small machinery, medical industry motor fields.

The company has a scientific and technological team that quotes advanced computer design, rich practical experience, sophisticated manufacturing technology, and has advanced manufacturing design and calculator control test instruments. From design, optimization, mold making, stamping, stacked aluminum die-casting, winding, insulation treatment, metal processing, assembly testing and factory sales service one-stop automated large-scale production, and has strong new product design and development capabilities.
