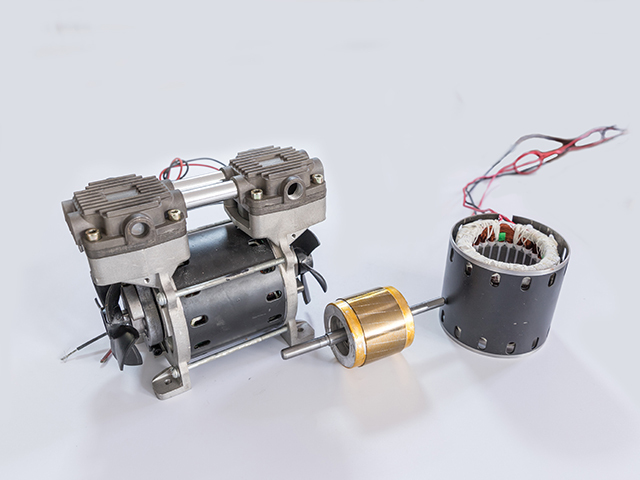

Single phase 360W AC Induction Motor for Oxygen generator compressor

Introduction

Changzhou Hengsheng Electric Co., Ltd, located in Changzhou city, Jiangsu Province, has been specialized in the field of exporting ac fan motor, motor driver, BLDC motor and PM motor for several years. We have our own production base and a strong R&D team. This is a single phase capacitor run AC motor for centrifugal fan blower. Power range from 50-550W, speed 500-1500RPM.

Quick Details

Output Power:100-550W

Type: Single Phase AC Induction Motor

Frequency:50/60hz

Phase:Single-phase

Certification:CCC, CE, ROHS, UL, ISO9000.UL.CSA

Protect Feature:Totally Enclosed

Voltage:115/120 V/208-230V

Insulation:Class B/F

Features:

• Reversible plug for easy rotation

• Class E/F/H Insulation

• Quick installation

• Energy efficient

• Quiet operation

• Ball bearing

• Dual voltage 115/208-230 voltage

• Diameter: Steel cover144mm

• Automatic overload

• Operating temp -10-43 degree

• Number of Pole: 6/8Pole

• Shaft size:15mm

• Speed: 825-1075rpm

• Thermal protection

• High efficiency,High reliability,Little vibration,Low noise

Specification

Learn more about Single Phase AC Induction Motor

The main two types of AC induction motors

1. AC motors can be mainly divided into AC single-phase motors and AC three-phase motors.

2. AC single-phase induction motor generally refers to a low-power single-phase asynchronous motor powered by single-phase AC power supply (AC220V). This kind of motor usually has a two-phase winding on the stator, and the rotor is an ordinary squirrel cage type.

The distribution of the two-phase windings on the stator and the different power supply conditions can produce different starting characteristics and operating characteristics.

(1) AC single-phase induction motor refers to an asynchronous motor that is powered by a 220V AC single-phase power supply. Because 220V power supply is very convenient and economical, and family life electricity is also 220V, so AC single-phase motor not only uses a large amount of production, but also closely related to people's daily life, especially with the increasing improvement of people's living standards, the amount of single-phase induction motors for household appliances and equipment is also increasing.

(2) In terms of production, there are micro water pumps, refiners, threshers, crushers, woodworking machinery, medical equipment cities, etc. In terms of life, there are electric fans, hair dryers, exhaust fans, washing machines, refrigerators, etc., there are many types, but the power is small.

We are an industry-focused, solution-oriented organization producing innovative products for our customers，in a supportive and progressive environment from our employees and suppliers. We continually seek new and alternative methods of improving all facets of our business with the goal of becoming the preeminent supply of standard and custom products to the various markets we serve. How may we help you?

INTRODUCTION

Changzhou Hengsheng Electric Co., Ltd. located in Changzhou city, Jiangu Province of China.

We focus on production of all kinds of small motor, we have strong R & D team and professional manufacturing base, and we provide non-standard customized service to our customers.

The core team members come from the internationally renowned motor industry, with advanced design concepts and management levels. According to the concept of Six-igma and the framework of TS6949, the company has established an effective operation system, and continuously optimized in management practice to ensure the high quality of all aspects of design and manufacturing.

The company's main products are BLDC motors, PMDC motors and various AC motors, widely used in central air conditioning motors, purification fans, industrial fan motors, high temperature drying motors, pump motors, axial fans, animal husbandry fan motors, dehumidifier fans, HVAC industry, small machinery, medical industry motor fields.

The company has a scientific and technological team that quotes advanced computer design, rich practical experience, sophisticated manufacturing technology, and has advanced manufacturing design and calculator control test instruments. From design, optimization, mold making, stamping, stacked aluminum die-casting, winding, insulation treatment, metal processing, assembly testing and factory sales service one-stop automated large-scale production, and has strong new product design and development capabilities.
