Steel Bracket Single Phase 1/2HP EC AC Fan Motor For Centrifugal Fan Blower

Introduction

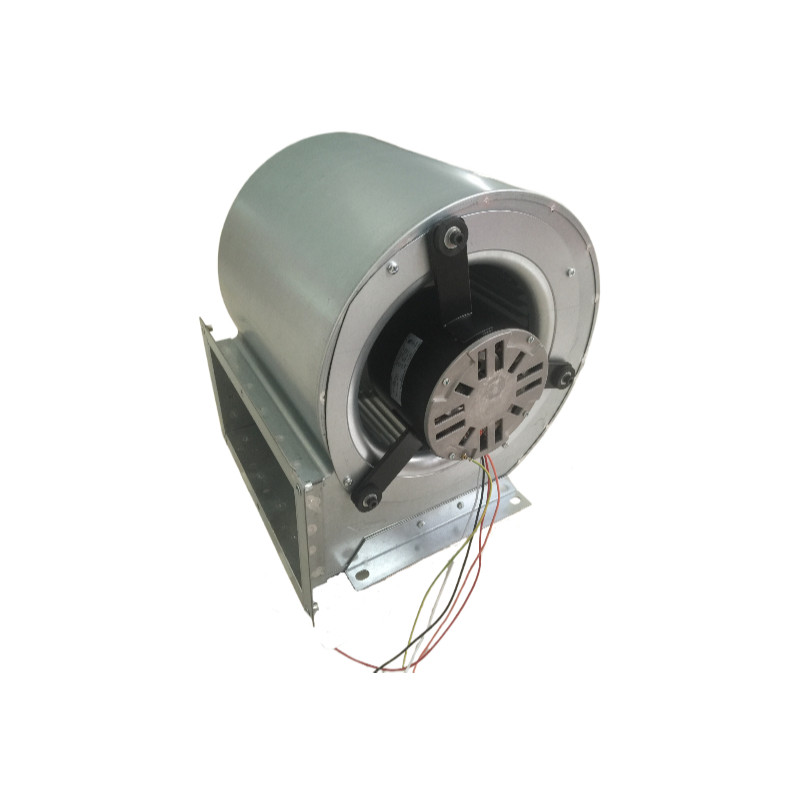

Changzhou Hengsheng Electric Co., Ltd, located in Changzhou city, Jiangsu Province, has been specilized in the field of exporting ac fan motor, motor driver, BLDC motor and PM motor for several years. We have our own production base and a strong R&D team. This is a single phase capacitor run AC motor for centrifugal fan blower. Power range from 5-350W, speed 500-1500RPM.

Quick Details

Output Power:5-350W

Type:AC Fan Motor, Induction Motor

Frequency:50/60hz

Phase:Single-phase

Certification:CCC, CE, ROHS, UL, ISO9000.UL.CSA

Protect Feature:Totally Enclosed

Voltage:115/120 V/208-230V

Insulation:Class B/F

Features:

• Reversible plug for easy rotation

• Class E/F/H Insulation

• Quick installation

• Energy efficient

• Quiet operation

• Ball bearing

• Dual voltage 115/208-230 voltage

• Diameter: Steel cover144mm

• Automatic overload

• Operating temp -10-43 degree

• Power:150-250W

• Rated Frequency:50/60Hz

• Number of Pole: 6/8Pole

• Shaft size:15mm

• Speed: 825-1075rpm

• Thermal protection

• High efficiency,High reliability,Little vibration,Low noise

Specification

More information

Basic Requirements of AC fan Motor for Centrifugal Fan

1. AC, asynchronous and air-cooled motors are used. The insulation grade of the motor is F, the temperature rise is B, and the protection grade is IP54. The power supply voltage is 220V/380V+/- 10%, 50HZ/50HZ.

2. Under design conditions, the rated output of the AC fan motor shall not be less than 120% of that required by the driven equipment.

3. The AC motor operates at full load. When the frequency change is ± 5% and the voltage change is ± 10%, the motor can operate normally without damage.

4. Under the rated voltage, the starting current of the AC fan motor shall not exceed 650% of the rated current.

We are an industry-focused, solution-oriented organization producing innovative products for our customers，in a supportive and progressive environment from our employees and suppliers. We continually seek new and alternative methods of improving all facets of our business with the goal of becoming the preeminent supply of standard and custom products to the various markets we serve. How may we help you?

INTRODUCTION

Changzhou Hengsheng Electric Co., Ltd. located in Changzhou city, Jiangu Province of China.

We focus on production of all kinds of small motor, we have strong R & D team and professional manufacturing base, and we provide non-standard customized service to our customers.

The core team members come from the internationally renowned motor industry, with advanced design concepts and management levels. According to the concept of Six-igma and the framework of TS6949, the company has established an effective operation system, and continuously optimized in management practice to ensure the high quality of all aspects of design and manufacturing.

The company's main products are BLDC motors, PMDC motors and various AC motors, widely used in central air conditioning motors, purification fans, industrial fan motors, high temperature drying motors, pump motors, axial fans, animal husbandry fan motors, dehumidifier fans, HVAC industry, small machinery, medical industry motor fields.

The company has a scientific and technological team that quotes advanced computer design, rich practical experience, sophisticated manufacturing technology, and has advanced manufacturing design and calculator control test instruments. From design, optimization, mold making, stamping, stacked aluminum die-casting, winding, insulation treatment, metal processing, assembly testing and factory sales service one-stop automated large-scale production, and has strong new product design and development capabilities.
