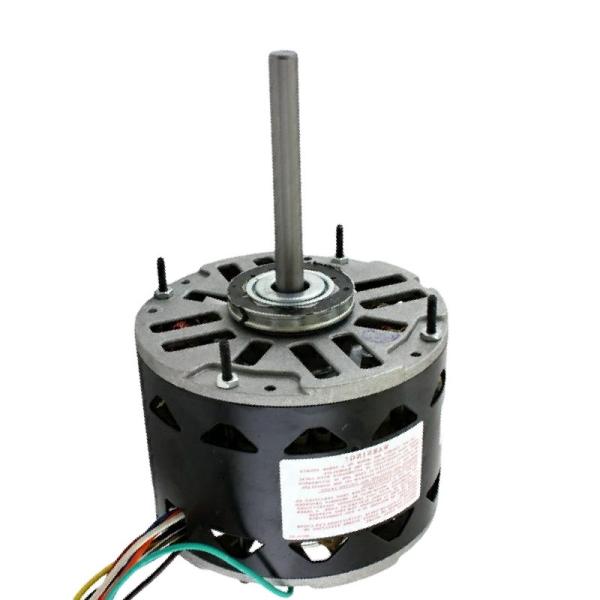

208-240V Single phase 1/4HP PSC AC Fan Motor for commercial air oven blower

Introduction

Changzhou Hengsheng Electric Co., Ltd, located in Changzhou city, Jiangsu Province, has been specialized in the field of exporting high quality AC fan motor for air oven blower, heat pump, air conditioning, heating and ventilation.This Single phase 80W-550W AC BLDC Motor for commercial heat pump is customized by customer for heat pump outdoor unit. We can also sell motors with fans as solution.

Quick Details

Output Power:80-500W

Type: AC Fan Motor

Frequency:50/60hz

Phase:Single-phase/Three phase

Certification:CCC, CE, ROHS, UL

Protect Feature:Totally Enclosed

Rated Voltage:115/120 V/208-230V

Insulation:Class B/H

Features:

• Energy Saver Design
• Permanent split capacitor
• Automatic thermal overload protection
• Ball and sleeve bearings
• Different capacitors/ speed combinations to fit various HP applications
• Class B, F insulation
• Extended clamp screws and resilient rings to fit multiple mounting requirements

Specification

More information of AC fan motor

How to connect the 6 wires AC fan motor

The colors of the five lead wires of the 6-wire fan motor are yellow, black, blue, white and red. The yellow and black wires are connected to the capacitor black wire, and the power supply zero line is connected at the same time. Blue, white, and red are connected to the high, medium and low gears of the speed control switch in turn, and the rest of the common end is connected to the live wire.

If the color of the lead wire is not correct or the wiring according to the color cannot work normally, you need to use a multimeter to judge, hit the digital multimeter gear to the 2K resistance file, find out the two wires with the largest DC resistance value among the five lead wires, and connect the capacitor.

Any question regarding to AC fan motor, please feel free to contact us.
