EC BLDC 100-240V BLDC motor for axial fan wheel or centrifugal blower

Introduction

This page shows a high power EC/BLDC fan motor used in fan blower or air conditioner units and similar applications, which need to drive fan blowers.

Till now, Hengsheng has a various of specifications of AC BLDC motors, and different induction motor, geared motor, PM motor with gearbox. Because of its long working life, stable performance and low failure rate, our products are well received by customers. We have got the certification of CCC, RoHS and ISO9001:2008.

Features of BLDC motor

1. Rated Voltage:200-240V 50Hz/60Hz

2. Output power range: 50-750W

3. Speed 300-1500 adjustable

4. The driver adopts the structure of aluminum shell completely closed, which has high protection level and is safe and reliable.

5. The driver adopts independent installation structure, which is convenient for disassembly and maintenance after sale.

6. The driver is integrated with three-speed, VSP10V,AC24V,PWM/PWF, RS485 control mode, and the function of speed feedback is optional.

7.Using infrared remote control, adjustable constant speed,constant torque, fan coil unit load, cassette fan coil unit load.clockwise or counterclockwise rotation

8.Using the same structure and installation method as the single-phase electric power, it is more convenient to replace and popularize

9.Rated speed 1070 RPM, rated output power 750W, Max Torque 6.5 Nm.

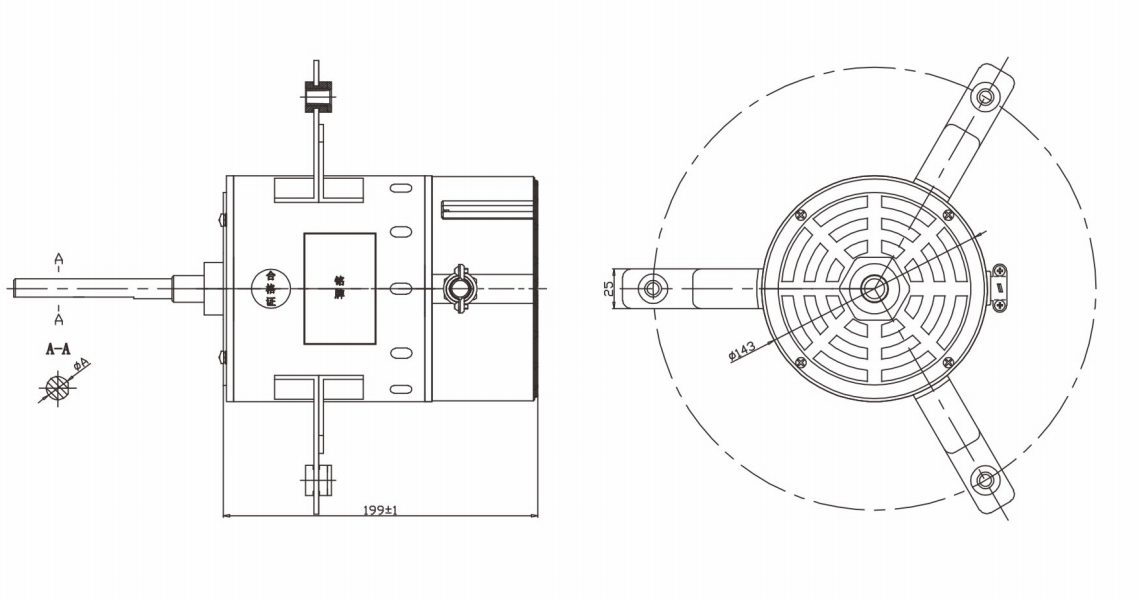

Specification

Advantage of Brushless DC Motor

Brushless DC motor has lower interference, lower noise, longer service life and lower maintenance cost. Compared with the brush DC motor, the brushless DC motor removes the brush. The most direct change is that there is no electric spark generated when the brush motor is running, which greatly reduces the interference of electric spark to remote control radio equipment. The brushless motor has no brushes, so the friction is greatly reduced during operation, the operation is smooth, and the noise is much lower. This advantage is a huge support for the stability of the model operation. Without brushes, the wear of brushless motor is mainly on the bearings. From a mechanical point of view, brushless motor is almost a maintenance free motor. When necessary, only some dust removal maintenance can be done.
